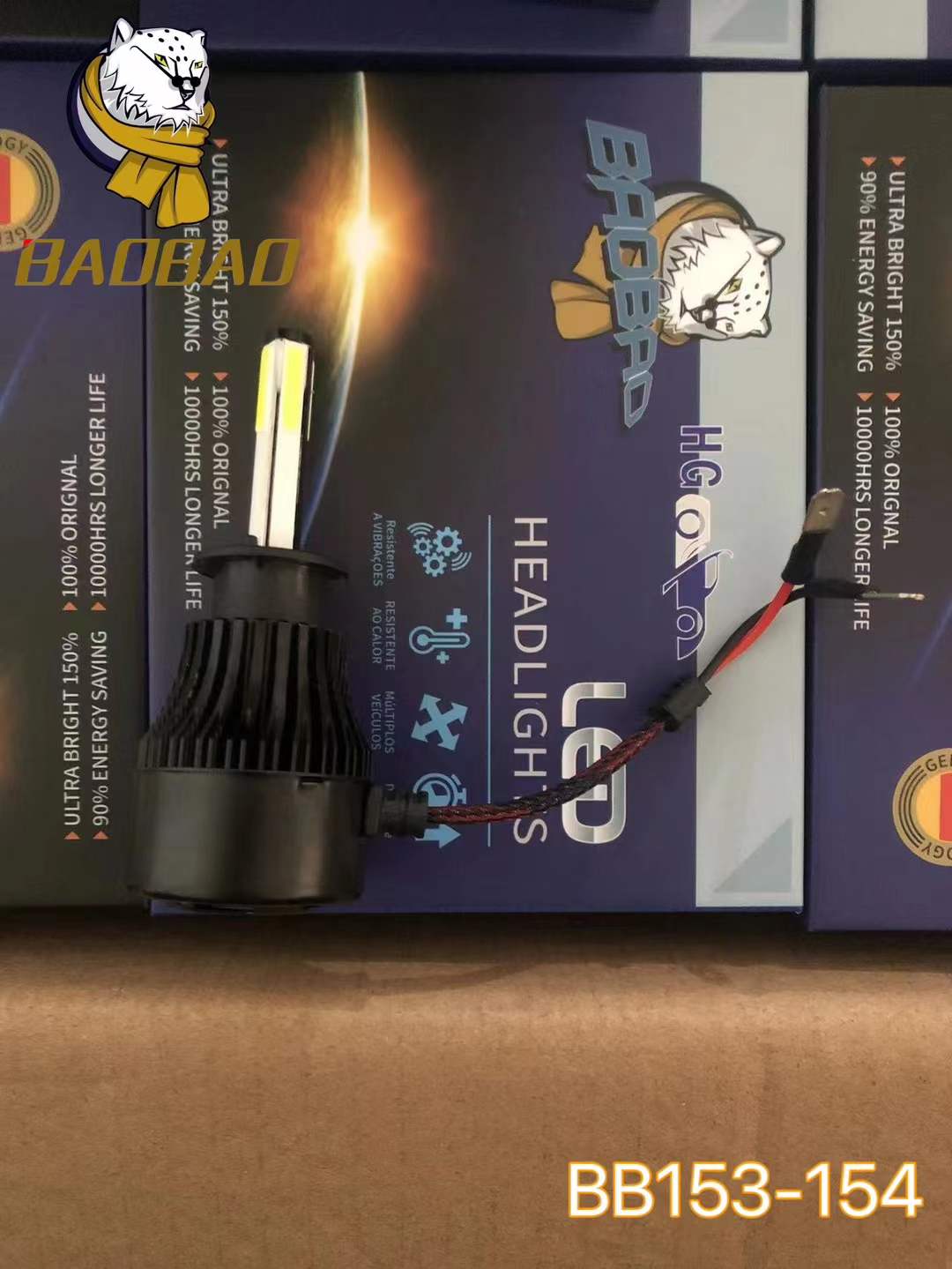

X7 Golden Box 4 Side 4 Face Multiple Color White Color LED
Headlight Bulb Motorcycle Auxiliary Lights HAOJUE Motor Spare Parts
Place of Origin
Guangdong, China
Brand Name
BAOBAO Lighting
Product name
Motorcycle Lights
Color Temperature
3000K(yellow)/6000k(white)
Installing a motorcycle light bulb is a relatively simple process,
but it requires careful operation to ensure safety and proper
function of the bulb. The following are general steps, which may
vary depending on the model and bulb type (headlight, turn signal,
taillight, etc.):
Preparation
Turn off the power
Turn off the engine and remove the motorcycle key to ensure that
the circuit is disconnected.
Prepare tools
Screwdriver (cross/slotted), gloves (oil-proof), new bulb (make
sure the model matches, such as H4, H7, etc.).
Check the manual
Refer to the vehicle manual to understand the bulb model and
removal and installation location.
Installation steps
1. Remove the lampshade or lamp holder
Headlight: Usually you need to remove the headlight cover (screw or
snap).
Turn signal/taillight: You may directly rotate the lamp holder or
remove the housing screws.
Note: Remove and place with care to avoid damaging plastic parts.
2. Remove the old bulb
Disconnect the power plug (pinch the plug on both sides to unplug).
Rotate the old bulb base (usually rotate 30°~45° counterclockwise
to remove).
Do not touch the glass of the new bulb directly with your hands
(grease may cause overheating and damage).
3. Install the new bulb
Align the base slot and rotate clockwise to fix it.
Re-plug the power connector to ensure good contact.
4. Test the bulb
Turn on the power and test the light (such as whether the high and
low beams of the headlights and the flashing of the turn signals
are normal).
If the light does not light up: check whether it is plugged in the
wrong way, the contact is poor, or the fuse is blown.
5. Restore the lampshade
Reinstall the lampshade and tighten the screws to ensure sealing
(special attention should be paid to waterproof models).
Notes
Bulb model: must be consistent with the original one (such as
power, interface shape).
Anti-scalding: The bulb just used needs to be cooled before
operation.
Waterproof treatment: Check whether the sealing ring is in place
after the taillight or turn signal is installed.
Circuit safety: If you modify the LED bulb yourself, you need to
confirm whether it matches the motorcycle circuit (you may need to
install a resistor).
Common problems
Bulb installed in reverse: the light direction is wrong, and the
slot position needs to be readjusted.
Water in the lampshade: The seal ring was not pressed tightly
during installation, so check and re-secure it.
Dim/flickering light: This may be due to poor contact or unstable
voltage. Check the circuit or replace the fuse.
If the operation is difficult or uncertain, it is recommended to go
to a professional repair shop to avoid damaging the lamp or
circuit.
